Ring replacement type roller bit
| Ring replacement type bit |
|---|
 |
|

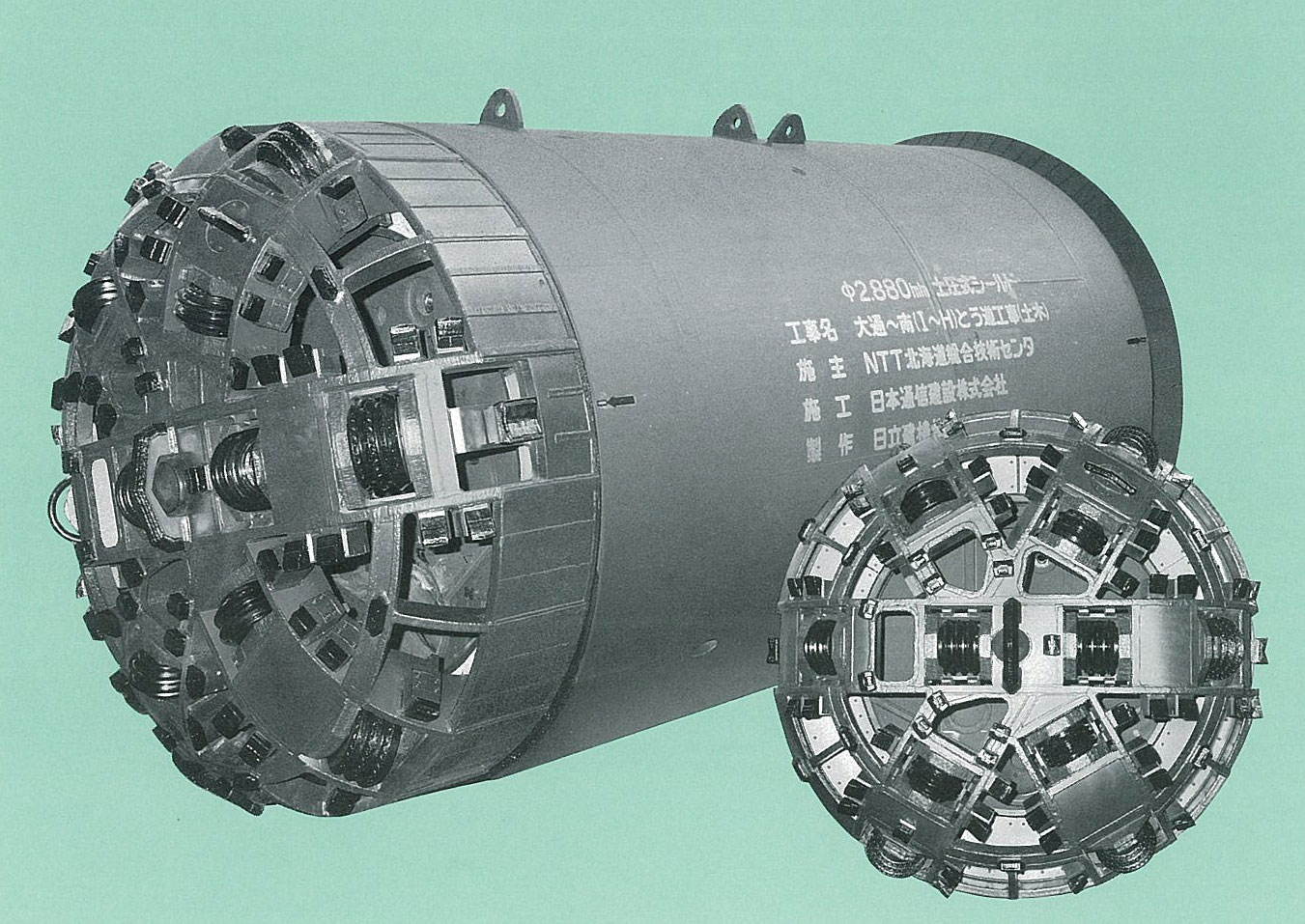

Roller Bit for shield machine has excellent biting and durability, it is especially effective for excavation propulsion of bedrock and boulders. · Efficiently crush with a cutting face, may be cobblestones in soft soil, gravel layers and hard bedrocks. · Possible to use long-hours, withstand heavy load excavation by sturdy structure with large bearing capacity. · Various sizes are available to select by shield diameter size and installation possition. · Excellent in the pressure resisting performance by special oil sealding the cutter inner lace and bearing. · Easy to install on the shield machine body, and easy to replace cutter quickly. |
SRB inner cutter

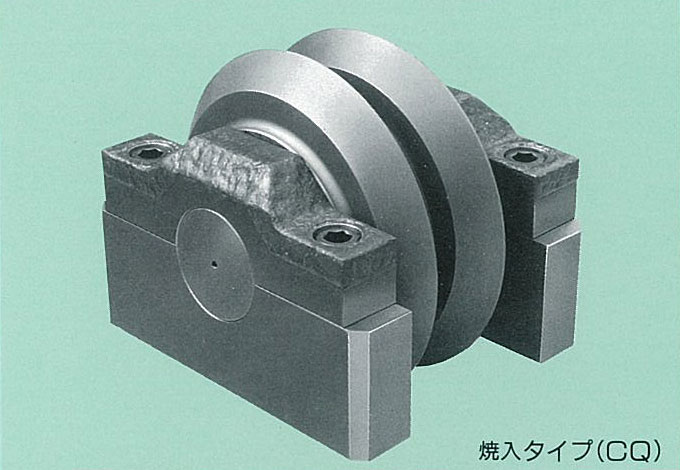

| SRB inner cutter Hardened type（CQ) |  |
|---|---|

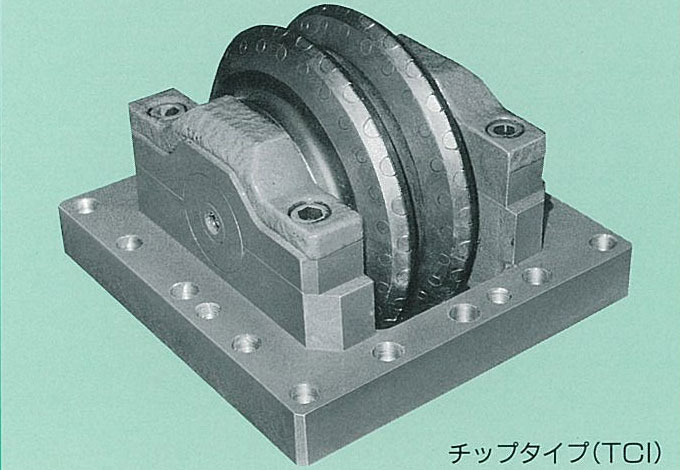

| SRB inner cutter chip type（TCI) |  |

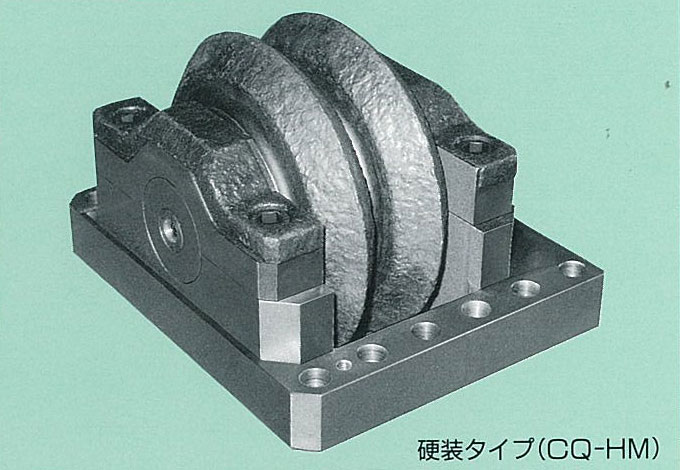

| SRB inner cutter Hardcover type（CQ-HM) |  |

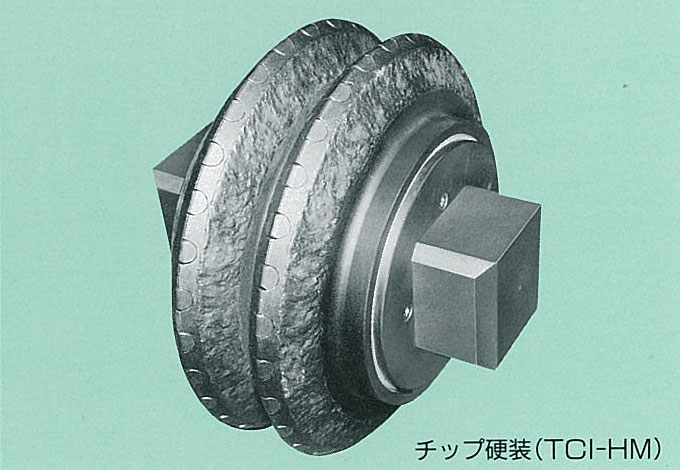

| SRB inner cutter Chip/hardcover type（TCI-HM) |  |
SRB gauge cutter

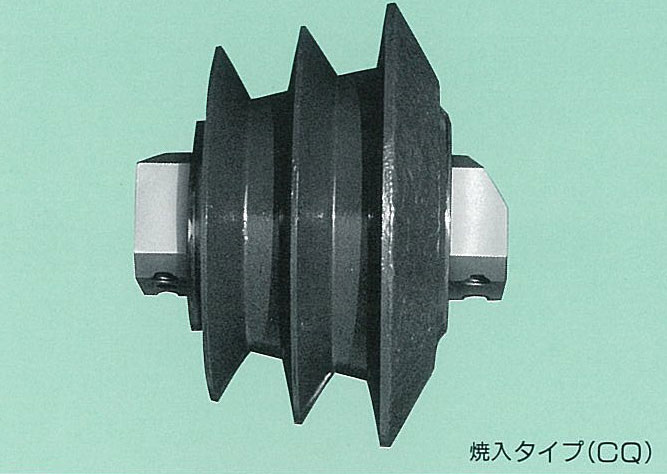

| SRB gauge cutter Hardened type（CQ) |  |
|---|---|

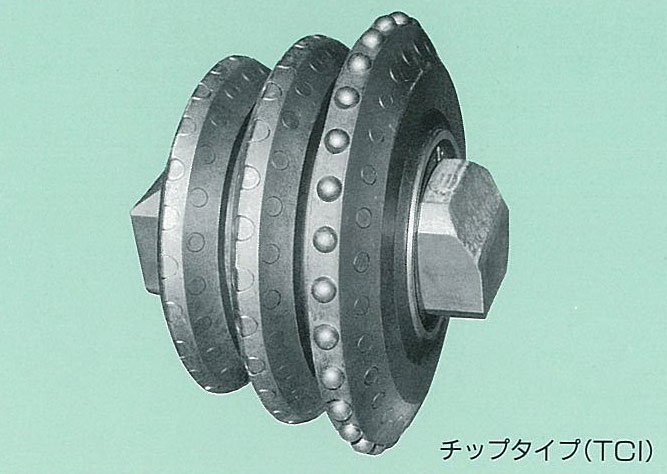

| SRB gauge cutter chip type（TCI) |  |
| SRB gauge cutter Hardcover type（CQ-HM) |  |

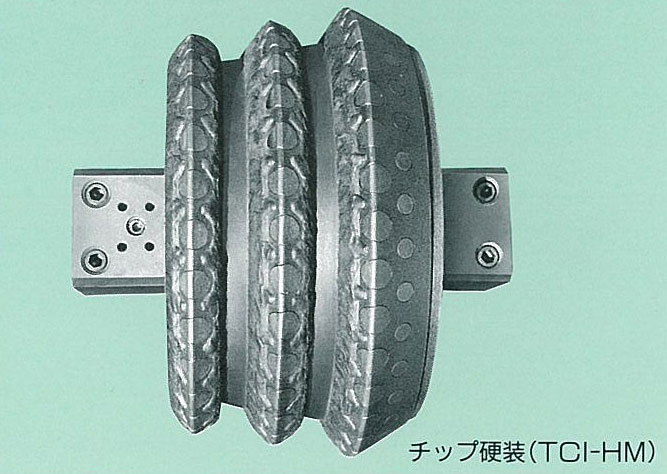

| SRB gauge cutter Chip/hardcover type（TCI-HM) |  |
tooth & insert
| center cutter CL-M Type |  |
|---|---|
| center cutter SSD-M Type |  |
| center cutter CL-VH4 Type |  |
| center cutter SSD-VH4 Type |  |
| gauge cutter SSD-M Type |  |
| gauge cutter SSD-VH4 Type |  |
| gauge cutter CL-M Type |  |
| gauge cutter LSD-VH4 Type |  |
| gauge cutter SD-M Type |  |
| gauge cutter SD-VH4 Type |  |

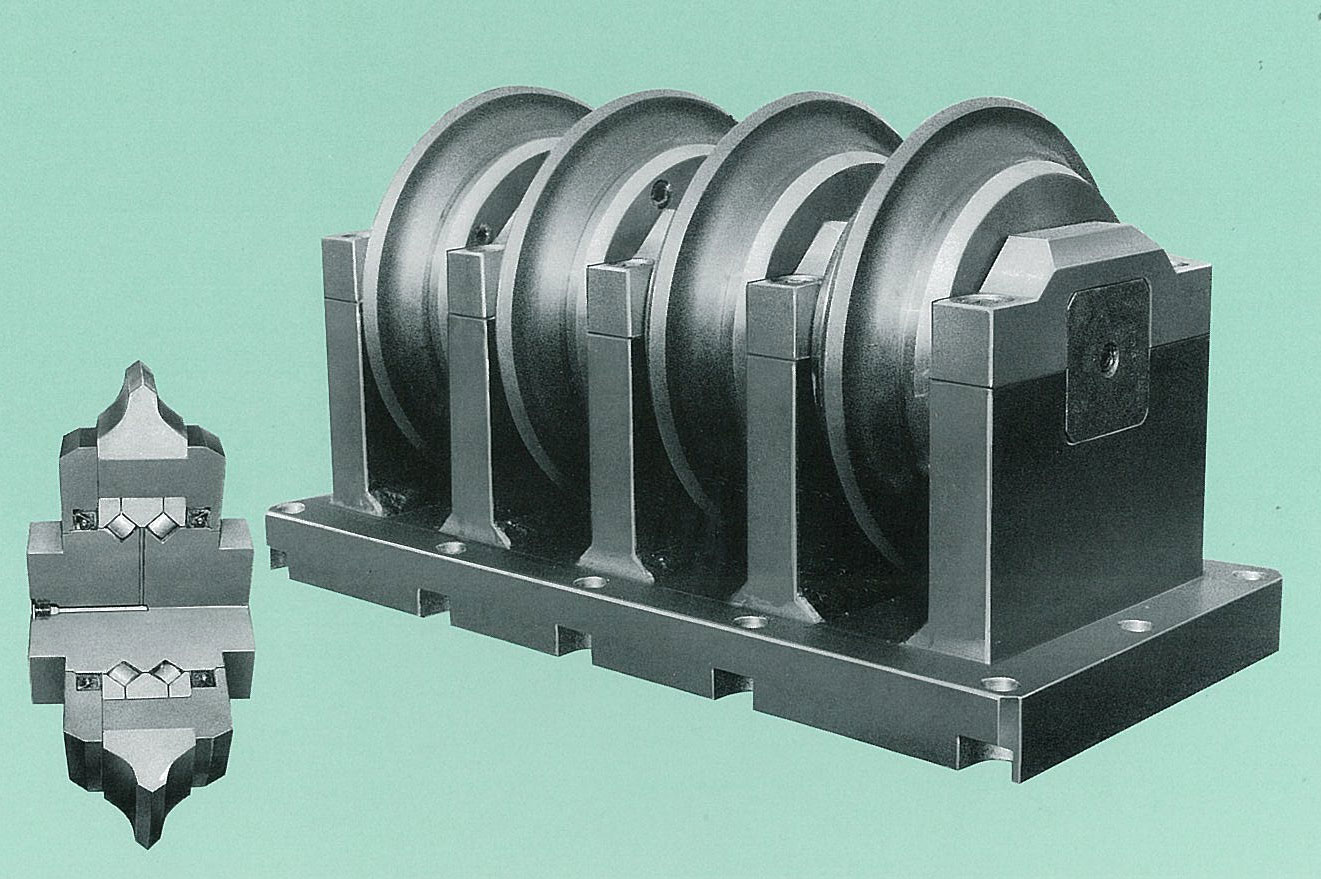

SRB center cutter
 |
| When pressing the cutter against the ground to crush the rock, conventional integrated cutters cannot rotate the disc independently, causing slippage and knitting wear. At our company, we have adopted an independent rotation system and smoothed the movement of the disc during crushing, making it possible to use it for a long time. |

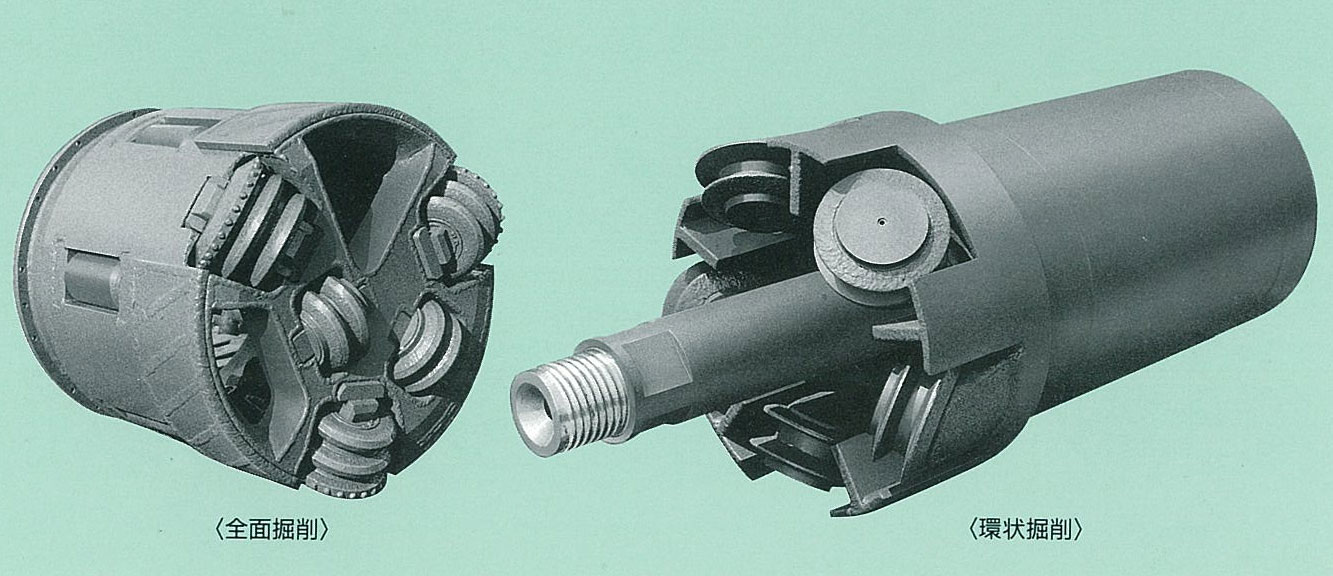

small diameter roller bit
 |
| As part of urban environmental facilities, construction work for burying water, sewage, and gas pipes, as well as construction work for managing power and communication cables, etc., is rapidly increasing.
Various small diameter pipe propulsion methods have been developed and put into practical use for these construction projects. Our company has developed a roller bit that can be attached to the cutter head of the small diameter pipe propulsion method, making it possible to easily excavate boulder layers and rock formations that were previously considered difficult. |

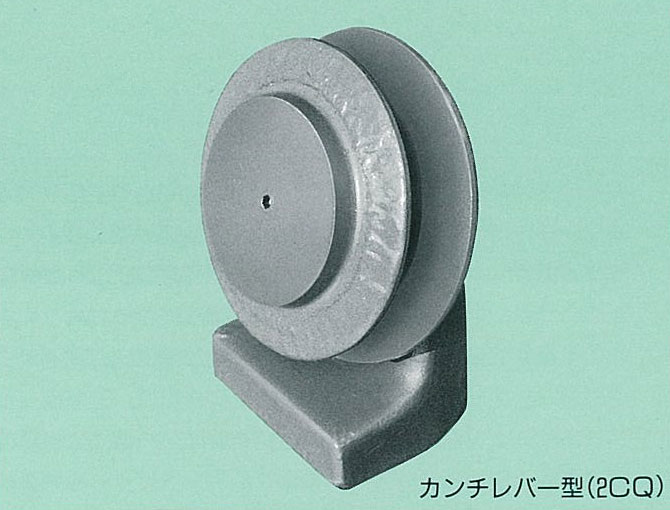

| small diameter roller bit cantilever Type（2CQ) |  |
|---|---|

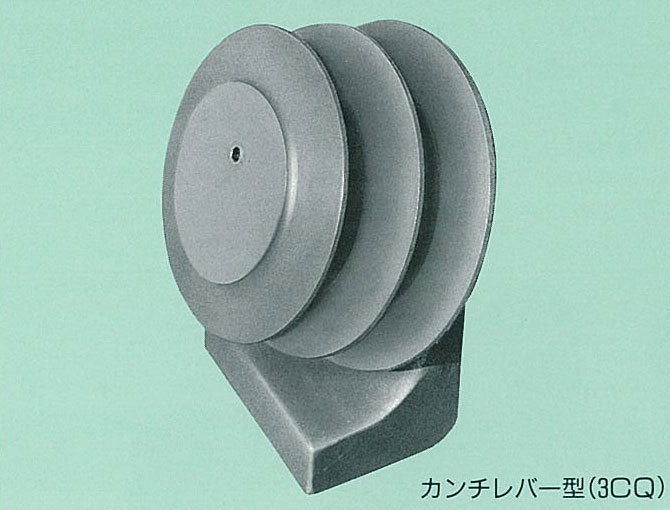

| small diameter roller bit cantilever Type（3CQ) |  |

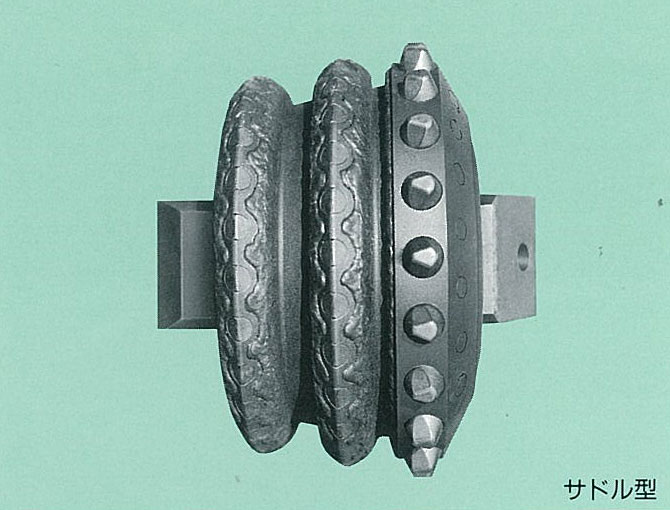

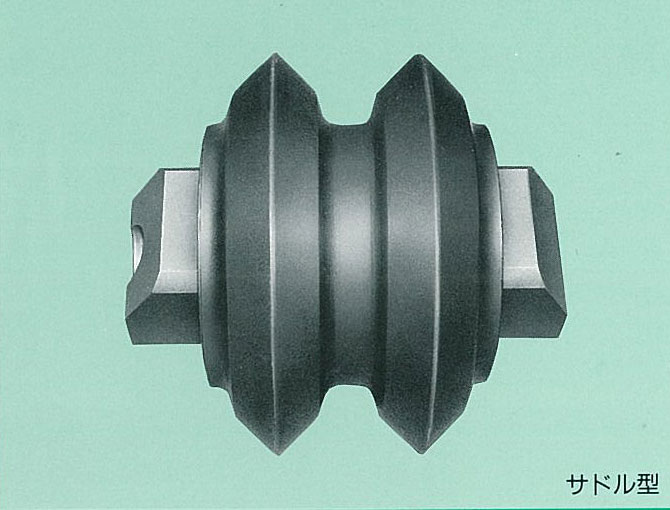

| small diameter roller bit saddle Type |  |
| small diameter roller bit saddle Type |  |
